Residential Energy Storage

Smart, scalable home battery systems — from compact backup units to whole-home energy independence.

ECO Series

Compact Entry-Level Storage

The ECO series delivers reliable backup and self-consumption for homes just beginning their clean energy journey.

Hot sellingECO11
ECO Series

ECO11

Compact 1040 Wh home storage unit for essential backup power and solar self-consumption.

ParameterValue
ModelECO11
Input PowerMax 1000W 6A
Charging Voltage Range154–264 Vac ±5VAC 50/60Hz
Rated Output800W
Output WaveformPure sine wave
Power Factor1PF
Efficiency>93%
DC5521 Output12V/4A Max48W
USB Fast Charging5V/9V/12V Max18W
Overload Capacity (Battery)10min@105%110%Load1min@110%~120%Load Overload capacity(battery) 2s@130%~150%Load200m5@>150%Load
Maximum Charging Current15A
PV Controller TypeMPPT
PV / MPPT Voltage Range28~60V
Maximum PV Input Power300W/10A
Protection FunctionsOverldischarge;Overcharge; Overload; Overcurrent;Short circuit; High Temperature; Low Temperature
Operating Temperature-10°C-50°℃
Storage Temperature-15°℃~60°℃
Humidity Range20%~95%（Nocondensing)
Cooling MethodForced Air Cooling
Battery / Cell TypeSolid-State Battery
View Details
Hot sellingECO20
ECO Series

ECO20

All-in-one and wall mounted design; Compact 2009.6 Wh residential energy storage with pure sine-wave output and flexible solar or grid charging.

ParameterValue
ModelECO20
Input PowerMax 1300W
Charging Voltage Range154–264 Vac ±5VAC 50/60Hz
Rated Output1000W
Output WaveformPure sine wave
Power Factor1PF
Efficiency>86%
Overload Capacity (Battery)Linear power derating above 1000W overload
Maximum Charging Current130A
PV Controller TypeMPPT
PV / MPPT Voltage Range12-60V
Maximum PV Input Power550W/15A
Protection FunctionsOverldischarge;Overcharge; Overload; Overcurrent;Short circuit; High Temperature; Low Temperature
Operating Temperature-10°C-50°℃
Storage Temperature-15°℃~60°℃
Humidity Range20%~95%（Nocondensing)
Cooling MethodForced Air Cooling
Battery / Cell TypeSolid-State Battery
Remote MonitoringRemote Wifi& Bluetooth (Supported)
View Details
ECO80
ECO Series

ECO80

High-capacity 8038.4 Wh residential energy storage for extended backup and demanding household loads.

ParameterValue
ModelECO80
Input PowerMax 5000W
Charging Voltage Range170–264 Vac ±5VAC
Rated Output3.6KW
Output WaveformPure sine wave
Power Factor1PF
Efficiency>99%
Overload Capacity (Battery)1min@102%~110%Load 10s@110%~130%Load 3s@130%~150%Load 0.2s@>150%Load
Maximum Charging Current2-100A
PV Controller TypeMPPT
PV / MPPT Voltage Range40-450V
Maximum PV Input Power5000W
Protection FunctionsOverldischarge;Overcharge; Overload; Overcurrent;Short circuit; High Temperature; Low Temperature
Operating Temperature-10°C-50°℃
Storage Temperature-15°℃~60°℃
Humidity Range20%~95%（Nocondensing)
Cooling MethodForced Air Cooling
Battery / Cell TypeSolid-State Battery
Display ModeLCD
Remote MonitoringWIFI/4G
View Details
ECO28
ECO Series

ECO28

High-capacity 3020 Wh unit covering larger households with extended backup duration.

ParameterValue
ModelECO28
Input PowerMax 1000W 6A
Charging Voltage Range170–264 Vac ±5VAC 50/60Hz
Rated Output3000W
Output WaveformPure sine wave
Power Factor1PF
Efficiency>92.7%
USB Fast Charging5V/9V/12V Max18W
Overload Capacity (Battery)1min@102%~110%Load 10s@110%~130%Load 3s@130%~150%Load 0.2s@>150%Load
Maximum Charging Current2-100A
PV Controller TypeMPPT
PV / MPPT Voltage Range40-450V
Maximum PV Input Power5000W/100A
Protection FunctionsOverldischarge;Overcharge; Overload; Overcurrent;Short circuit; High Temperature; Low Temperature
Operating Temperature-10°C-50°℃
Storage Temperature-15°℃~60°℃
Humidity Range20%~95%（Nocondensing)
Cooling MethodForced Air Cooling
Battery / Cell TypeSolid-State Battery
Display ModeLCD
Remote MonitoringWIFI/4G
View Details
APOLO Series

5 kW All-in-One Home System

The APOLO5K integrates inverter and battery in a single unit — available in 6, 12 and 18 kWh configurations for complete home energy management.

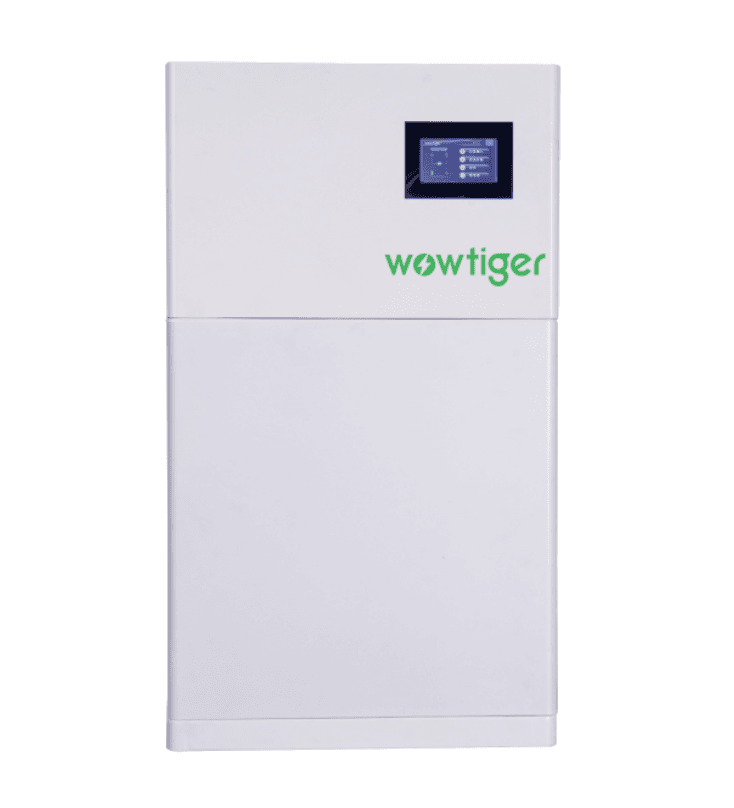

APOLO5K — 6 kWh
APOLO Series

APOLO5K — 6 kWh

Entry APOLO configuration. Ideal for small families seeking solar self-consumption and backup power.

ParameterValue
ModelAPOLO5K
Input PowerMax 1000W 6A
Charging Voltage Range170-280V
Rated Output5000W
Output WaveformPure sine wave
Power Factor1PF
Efficiency>94.5%
Overload Capacity (Battery)1min@102%~110%Lad 10s@10%~130%Load 3s@130%~150%Load 0.2s@>150%Load
Maximum Charging Current80A
PV Controller TypeMPPT
PV / MPPT Voltage Range120-340V
Maximum PV Input Power5500W
Protection FunctionsOverldischarge;Overcharge; Overload; Overcurrent;Short circuit; High Temperature; Low Temperature
Operating Temperature-10°C-50°℃
Storage Temperature-15°℃~60°℃
Humidity Range20%~95%（Nocondensing)
Cooling MethodForced Air Cooling
Battery / Cell TypeSolid-State Battery
Display ModeHD touch screen
Remote MonitoringWIFI/4G
View Details
APOLO5K — 12 kWh
APOLO Series

APOLO5K — 12 kWh

Double capacity for larger homes. Covers daily energy needs from solar with substantial backup reserve.

ParameterValue
ModelAPOLO5K — 12 kWh
Input PowerMax 1000W 6A
Charging Voltage Range154–264 Vac ±5VAC 50/60Hz
Rated Output5000W
Output WaveformPure sine wave
Power Factor1PF
Efficiency>99.5%
Overload Capacity (Battery)1min@102%~110%Lad 10s@10%~130%Load 3s@130%~150%Load 0.2s@>150%Load
Maximum Charging Current80A
PV Controller TypeMPPT
PV / MPPT Voltage Range120-430V
Maximum PV Input Power5500W
Protection FunctionsOverldischarge;Overcharge; Overload; Overcurrent;Short circuit; High Temperature; Low Temperature
Operating Temperature-10°C-50°℃
Storage Temperature-15°℃~60°℃
Humidity Range20%~95%（Nocondensing)
Cooling MethodForced Air Cooling
Battery / Cell TypeSolid-State Battery
Display ModeHD touch screen
View Details

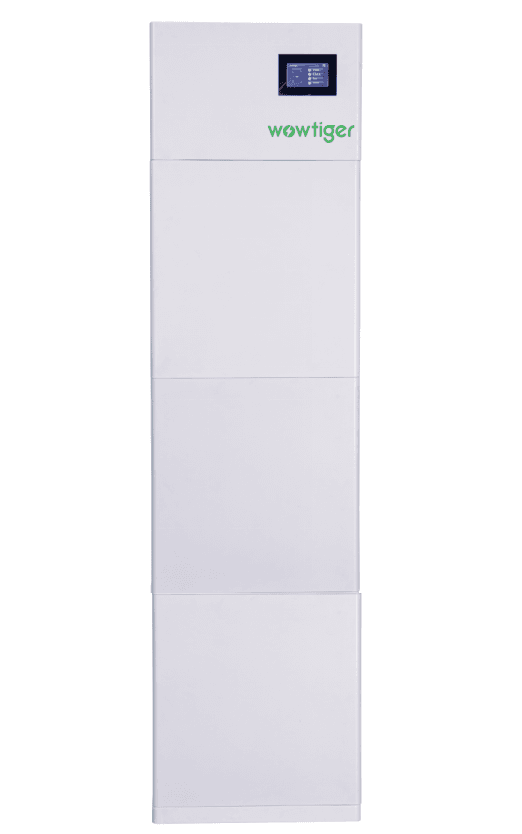

APOLO5K — 18 kWh
APOLO Series

APOLO5K — 18 kWh

Maximum APOLO configuration for high-consumption homes or partial off-grid operation.

ParameterValue
ModelAPOLO5K — 18 kWh
Input PowerMax 1000W 6A
Charging Voltage Range154–264 Vac ±5VAC 50/60Hz
Rated Output800W
Output WaveformPure sine wave
Power Factor1PF
Efficiency>93%
DC5521 Output12V/4A Max48W
USB Fast Charging5V/9V/12V Max18W
Overload Capacity (Battery)10min@105%110%Load1min@110%~120%Load Overload capacity(battery) 2s@130%~150%Load200m5@>150%Load
Maximum Charging Current15A
PV Controller TypeMPPT
PV / MPPT Voltage Range28~60V
Maximum PV Input Power300W/10A
Protection FunctionsOverldischarge;Overcharge; Overload; Overcurrent;Short circuit; High Temperature; Low Temperature
Operating Temperature-10°C-50°℃
Storage Temperature-15°℃~60°℃
Humidity Range20%~95%（Nocondensing)
Cooling MethodForced Air Cooling
Battery / Cell TypeSolid-State Battery
View Details
MAX Series

High-Performance Wall & Stack Systems

The MAX series delivers premium capacity and expandability for demanding residential and light commercial applications.

SI485KP
MAX Series

SI485KP

High-power hybrid inverter system with modular battery expansion capability.

ParameterValue
ModelSI485KP
Input PowerMax 1000W 6A
Charging Voltage Range170~280VAC
Rated Output5000W
Output WaveformPure sine wave
Power Factor1PF
Efficiency>94.5%
Overload Capacity (Battery)1min@102%~110%Load /n0s@110%~130%Load/4S@130%~190%Load/200ms@>190%Load
Maximum Charging Current80A
PV Controller TypeMPPT
PV / MPPT Voltage Range120-430V
Maximum PV Input Power5500W
Protection FunctionsOverldischarge;Overcharge; Overload; Overcurrent;Short circuit; High Temperature; Low Temperature
Operating Temperature-10°C-50°℃
Storage Temperature-15°℃~60°℃
Humidity Range20%~95%（Nocondensing)
Cooling MethodForced Air Cooling
Battery / Cell TypeSolid-State Battery
Display ModeHurdtuch, Sklin, Ryder (optional)
Remote MonitoringWIFI/4G
View Details

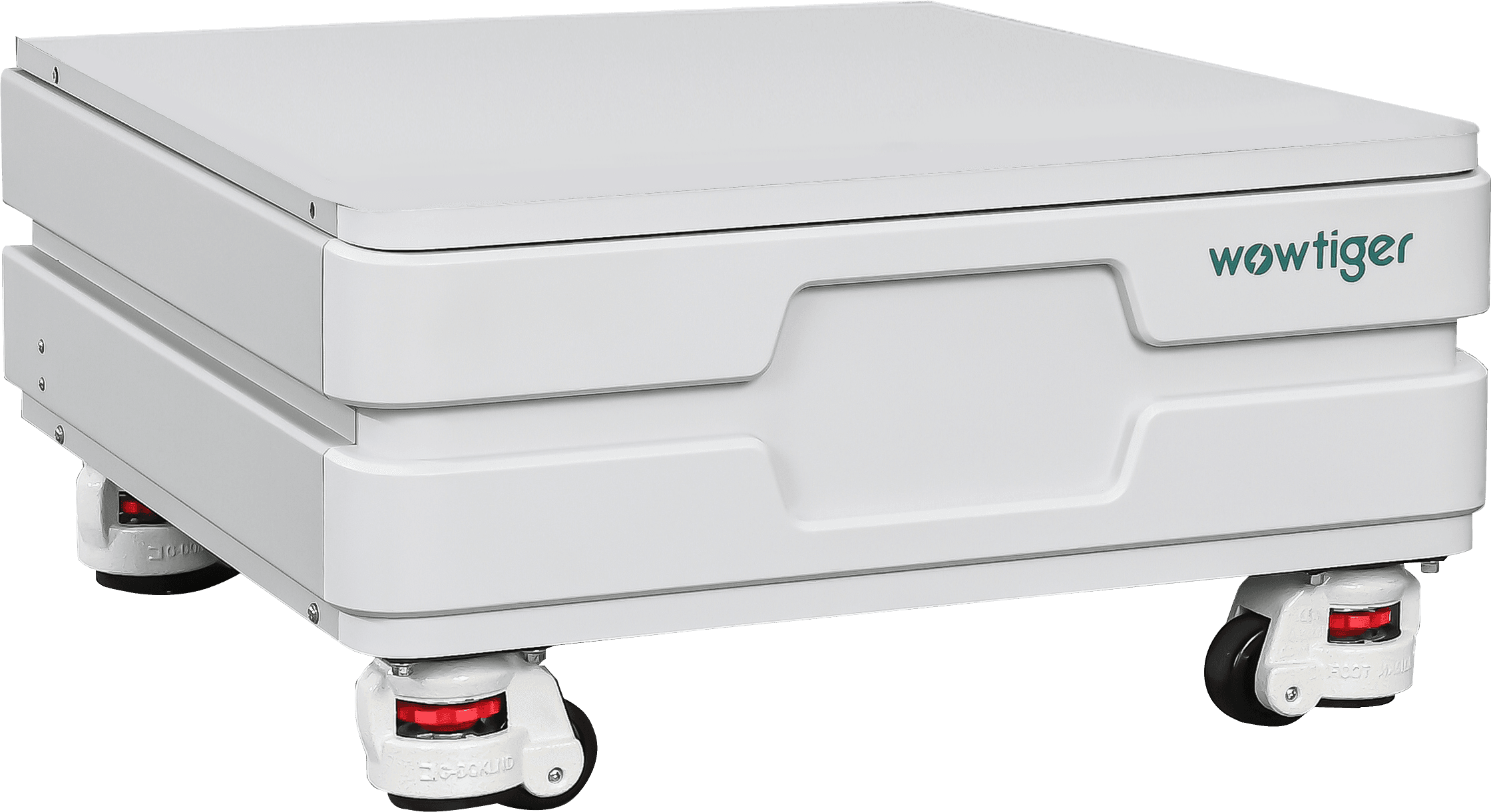

SD-SS516H
MAX Series · Battery Module

SD-SS516H

Stackable 6144 Wh battery module at 51.2 V / 120A with 1C charge rate for rapid cycling.

ParameterValue
ModelSD-SS516H
Rated Capacity6144Wh
Cell Configuration16S2P
Rated Voltage51.2V
Battery Voltage Range41.6-58.4v
Maximum Continuous Current120A/1C
Maximum Parallel Units6
Protection FunctionsOverldischarge;Overcharge; Overload; Overcurrent;Short circuit; High Temperature; Low Temperature
Operating Temperature-10°C-50°℃
Storage Temperature-15°℃~60°℃
Humidity Range20%~95%（Nocondensing)
Cooling MethodForced Air Cooling
Battery / Cell TypeLFP Solid-State Battery
InstallationStack
View Details

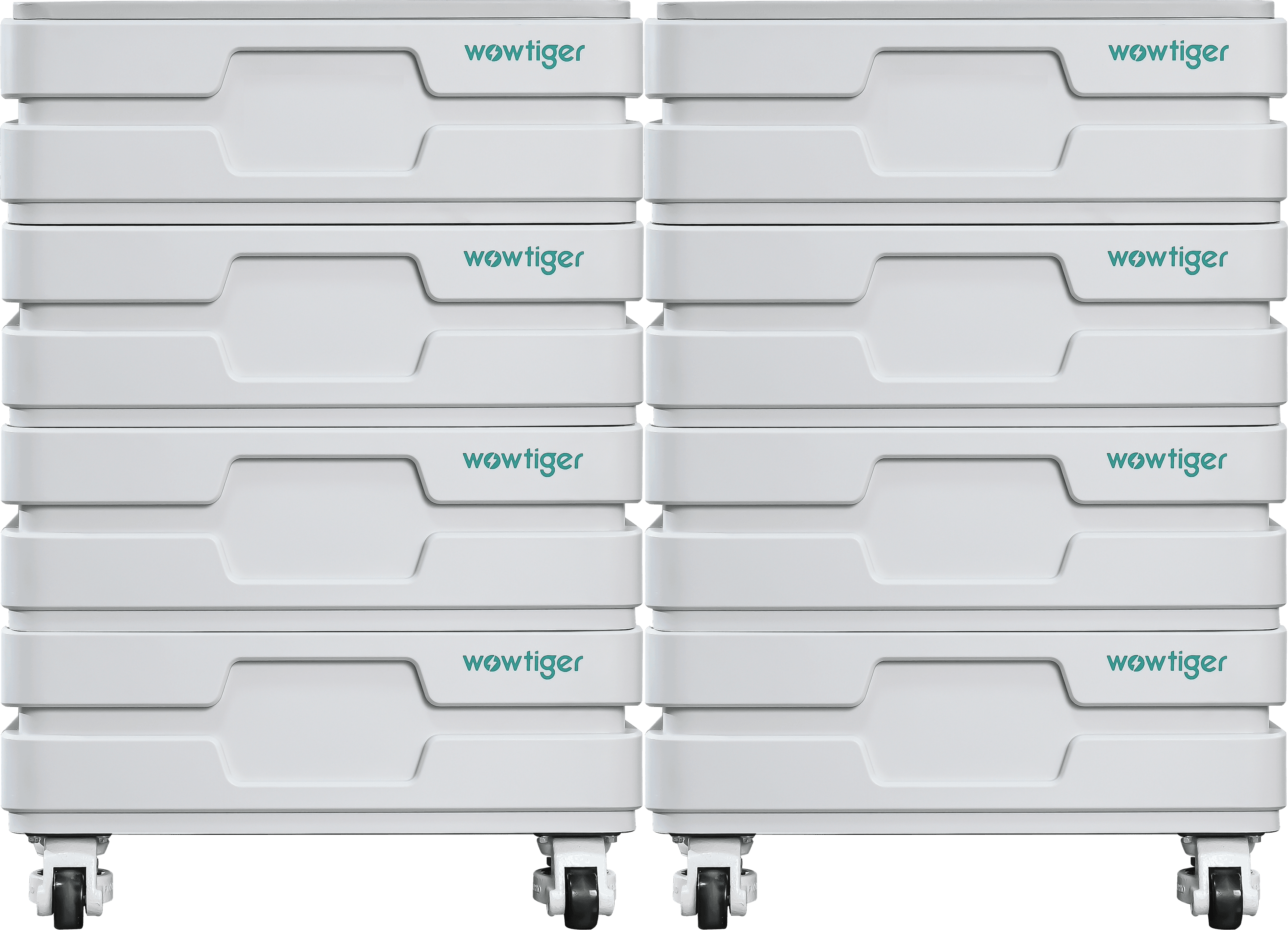

SD-SS516S
MAX Series · Battery Module

SD-SS516S

Max Parallel to 96kWh/16pcs

ParameterValue
ModelSD-SS516S
Rated Capacity6144Wh
Cell Configuration16S2P
Rated Voltage51.2V
Maximum Continuous Current100A
Maximum Parallel Units6
Protection FunctionsOverldischarge;Overcharge; Overload; Overcurrent;Short circuit; High Temperature; Low Temperature
Operating Temperature-10°C-50°℃
Storage Temperature-15°℃~60°℃
Humidity Range20%~95%（Nocondensing)
Cooling MethodForced Air Cooling
Battery / Cell TypeSolid-State Battery
Altitude<2000m
View Details
Storage Battery

Flexible Battery Storage

Rack-mounted and modular lithium-ion battery solutions for scalable energy storage systems.

Server Rack Battery

HH LPS48100-B
Server Rack Battery

HH LPS48100-B

5.12kWh Rack-mounted Design

ParameterValue
ModelHH LPS4800-B
Rated Capacity5120Wh
Battery / Cell TypeLFP
Cell Configuration16S1P
Rated Voltage51.2V
Battery Voltage Range44.6-58.4V
Maximum Continuous Current100A
CommunicationCAN/485
Protection FunctionsOvercharge, Over-discharge, Overcurrent, Short circuit, Over-temperature
Remote MonitoringWIFI
Maximum Parallel Units15pcs
Operating Temperature0~55℃(charging)-20~60℃ (discharging)
Storage Temperature-20~40°℃(≤1 month)/0~35℃(≤1)
Humidity Range20%~95%(non-condensing)
Altitude<2000m
InstallationRack-mounted/stacked
View Details

Lithium-ion Battery Module

WM-SS4816S
Lithium-ion Battery Module

WM-SS4816S

16KWh Lithium-ion Battery Module

ParameterValue
ModelWM-SSL4816S
Rated Capacity16.0786Wh
Battery / Cell TypeSolid-state Battery
Cell Configuration16S1P
Rated Voltage51.2V
Battery Voltage Range44.6~58.4V
Maximum Continuous Current200A
CommunicationCAN/485
Protection FunctionsOvercharge; Over-discharge; Overcurrent; Short Circuit; Over-Temperature
Remote MonitoringWIFI
Maximum Parallel Units15pcs
Operating Temperature0~55°C (charging) -20~60°C (discharging)
Storage Temperature-20~40°C(≤1 month)/0~35°C(≤1)
Humidity Range20%~95%( non-condensing)
Altitude<2000m
InstallationFloor-Mounted
View Details

Find the Right Home Storage System

Our engineers will help you design the optimal configuration based on your solar system, energy usage and budget.
