MAX Series · Battery Module

SD-SS516H

Stackable 6144 Wh battery module at 51.2 V / 120A with 1C charge rate for rapid cycling.

6144 Wh51.2 V120A / 1C
Request a QuoteBack to Products

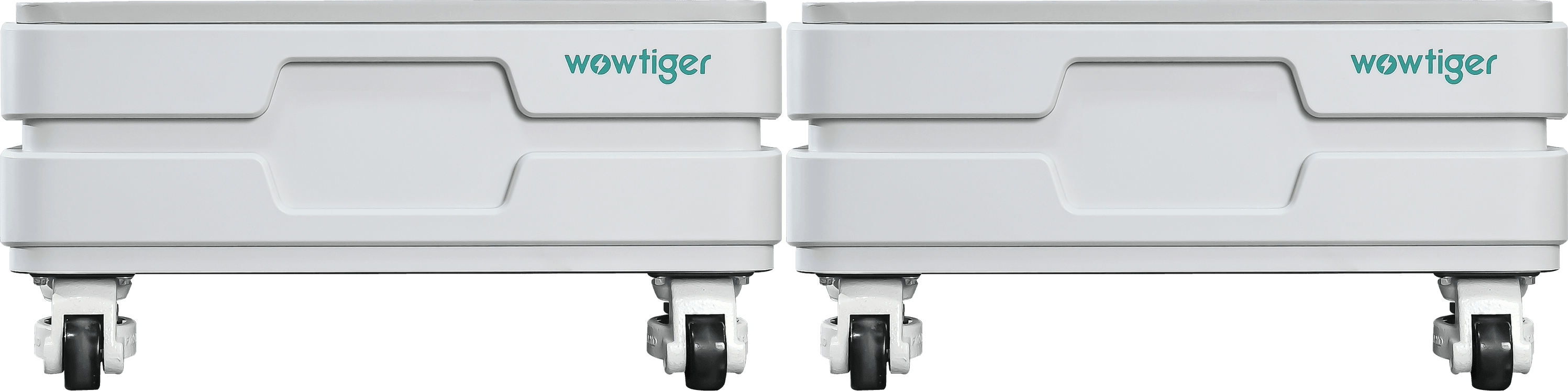

Product Gallery

Product Images & Diagrams

Product Advantages

Features & Selling Points

  1. Stacked design, Easy & quick installation
  2. Functional modularization, flexible parallel
  3. Scalable output power and battery capacity
  4. Inverter module power: 5kW （can adapt to different inverters)
  5. Maximum parallel up to 30kW / 6 pcs
  6. Battery module capacity: 6kWH
  7. Maximum parallel up to 36kWh /6 pcs
  8. App, PC, and touch display control options
Specifications

Specifications

ParameterValue
ModelSD-SS516H
Rated Capacity6144Wh
Cell Configuration16S2P
Rated Voltage51.2V
Battery Voltage Range41.6-58.4v
Maximum Continuous Current120A/1C
Maximum Parallel Units6
Protection FunctionsOverldischarge;Overcharge; Overload; Overcurrent;Short circuit; High Temperature; Low Temperature
Operating Temperature-10°C-50°℃
Storage Temperature-15°℃~60°℃
Humidity Range20%~95%（Nocondensing)
Cooling MethodForced Air Cooling
Battery / Cell TypeLFP Solid-State Battery
InstallationStack
