Lithium-ion Battery Module

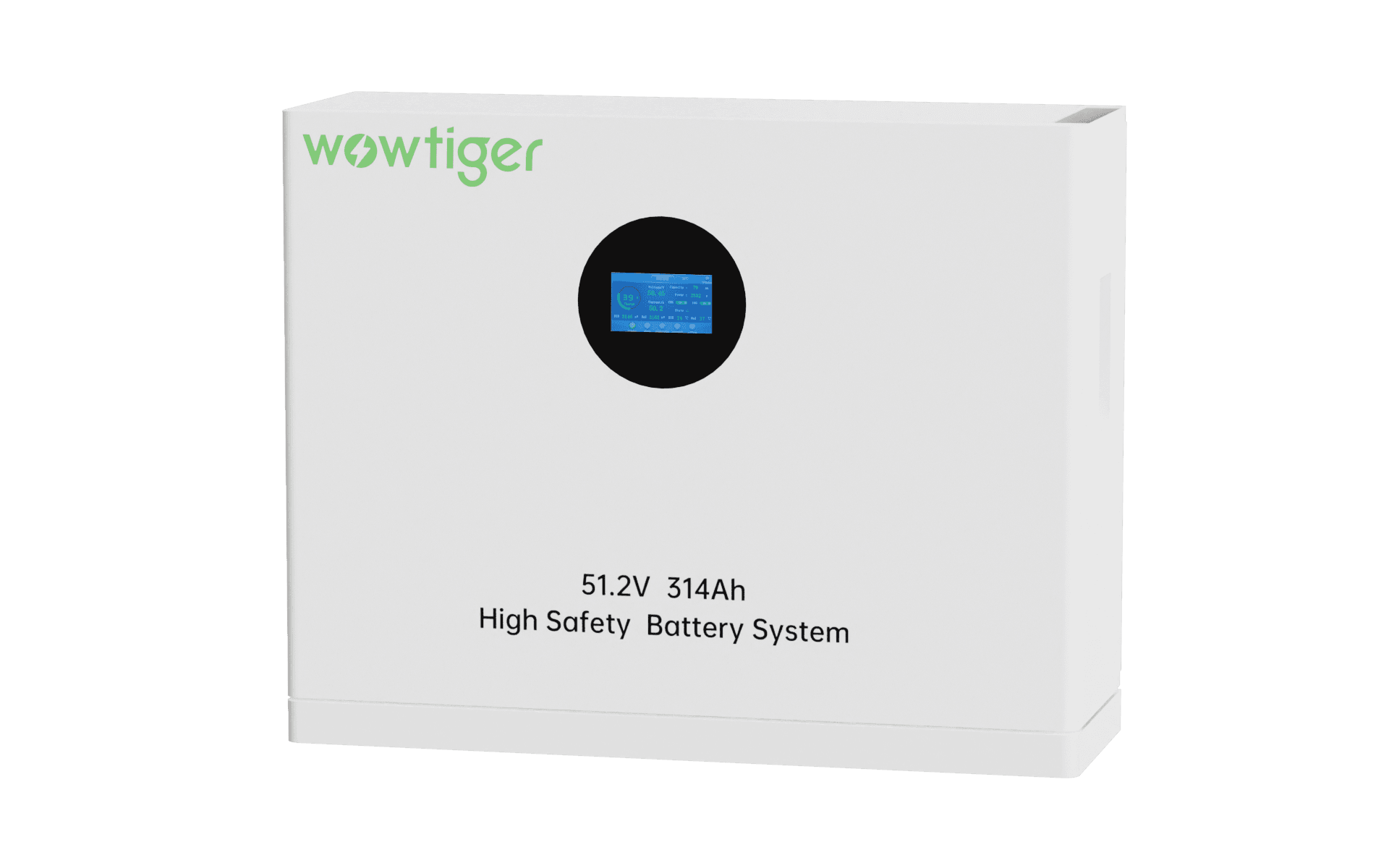

WM-SS4816S

16KWh Lithium-ion Battery Module

Request a QuoteBack to Products
Product Gallery

Product Images & Diagrams

Product Advantages

Features & Selling Points

  1. Robust-16KWh Nominal Energy
  2. Fail-Safe Protections
  3. High Safety Solid-State Cells
  • Multi-layer Intelligent BMS Monitoring
  • Overheat & Overcurrent Protection
  1. Powerful-200A/10.24KW Output Power

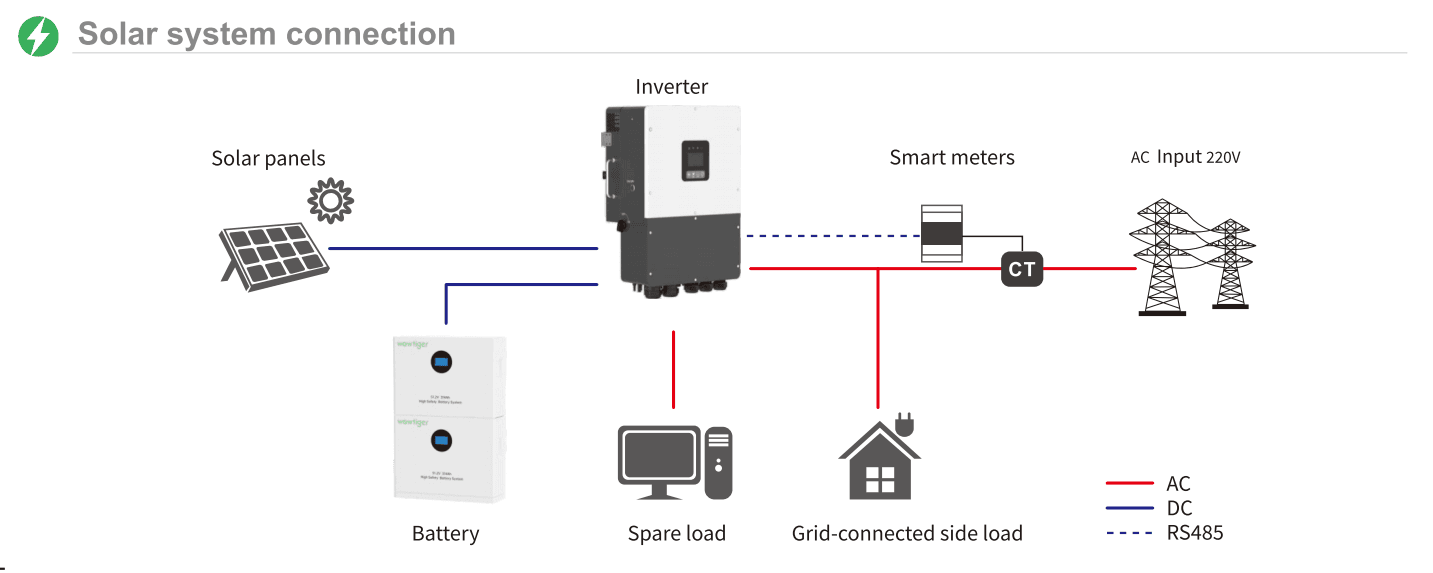

  2. Wide Compatibility- Closed Loop Communication with Most Inverters
  3. Effortless Installation
  • Wall-mounted & Floor-standing Installation
  • Quick Commissioning
Specifications

Specifications

ParameterValue
ModelWM-SSL4816S
Rated Capacity16.0786Wh
Battery / Cell TypeSolid-state Battery
Cell Configuration16S1P
Rated Voltage51.2V
Battery Voltage Range44.6~58.4V
Maximum Continuous Current200A
CommunicationCAN/485
Protection FunctionsOvercharge; Over-discharge; Overcurrent; Short Circuit; Over-Temperature
Remote MonitoringWIFI
Maximum Parallel Units15pcs
Operating Temperature0~55°C (charging) -20~60°C (discharging)
Storage Temperature-20~40°C(≤1 month)/0~35°C(≤1)
Humidity Range20%~95%( non-condensing)
Altitude<2000m
InstallationFloor-Mounted
Downloads

Product Documents & Guides

Documents and guides will be available here once published.
