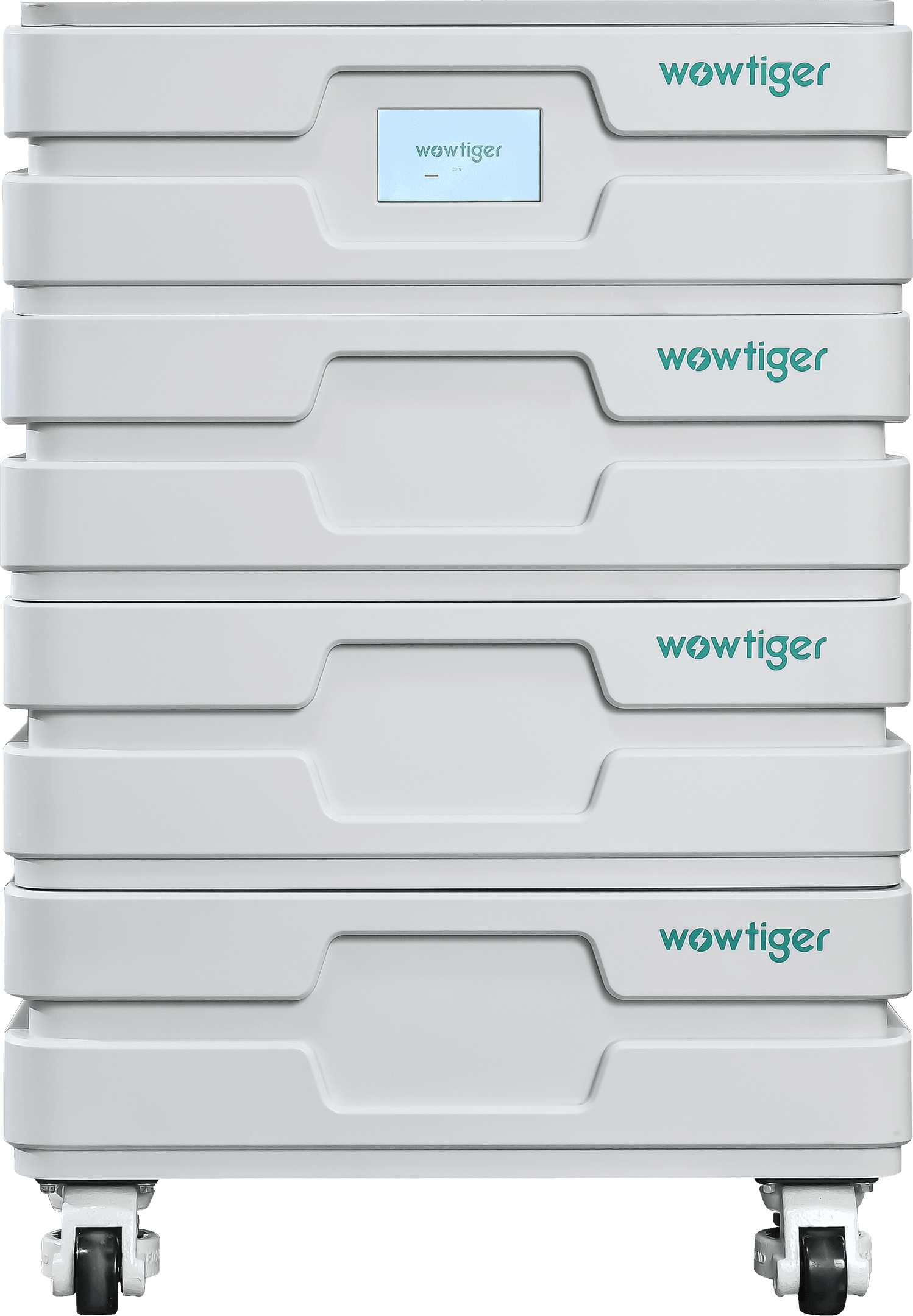

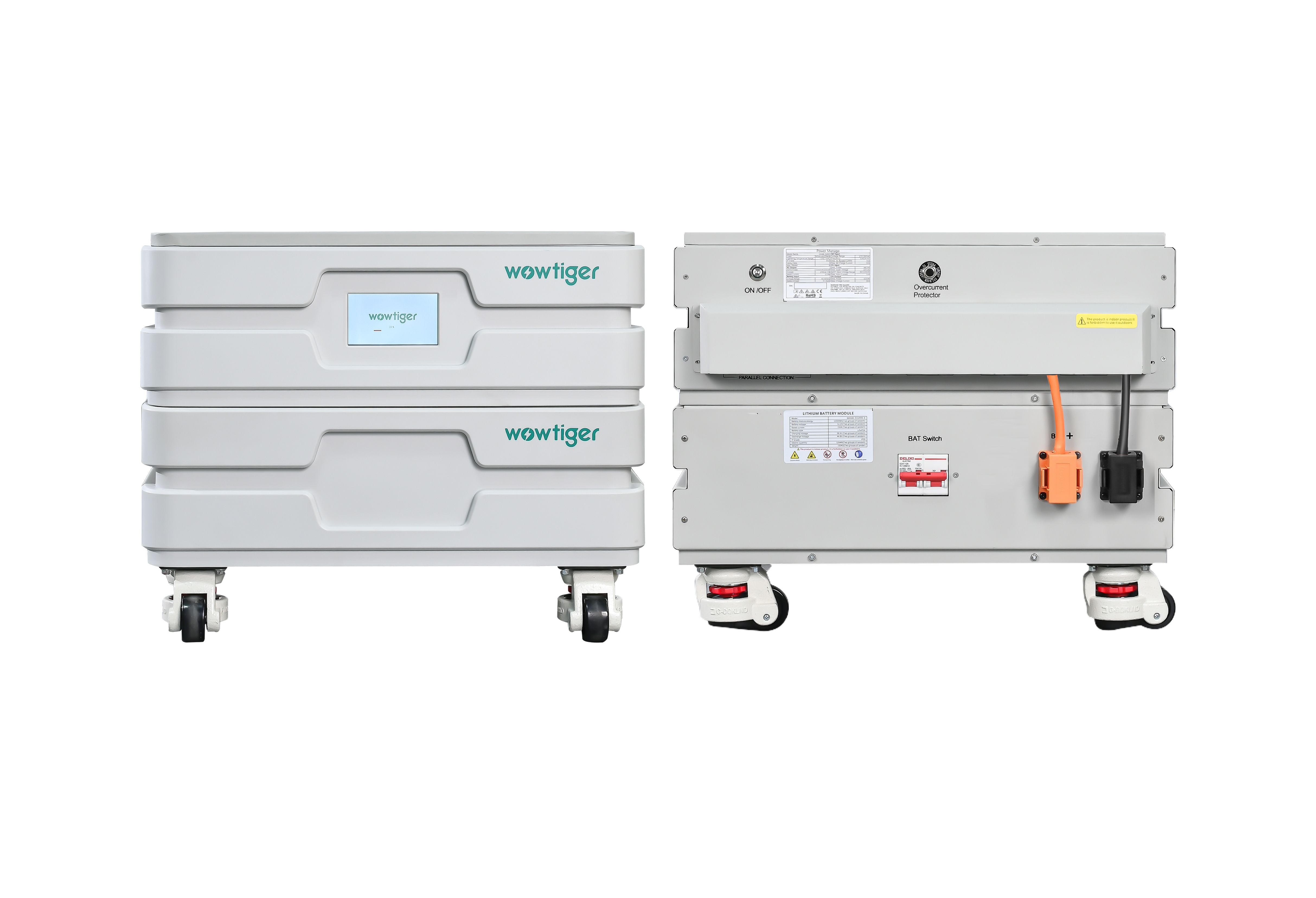

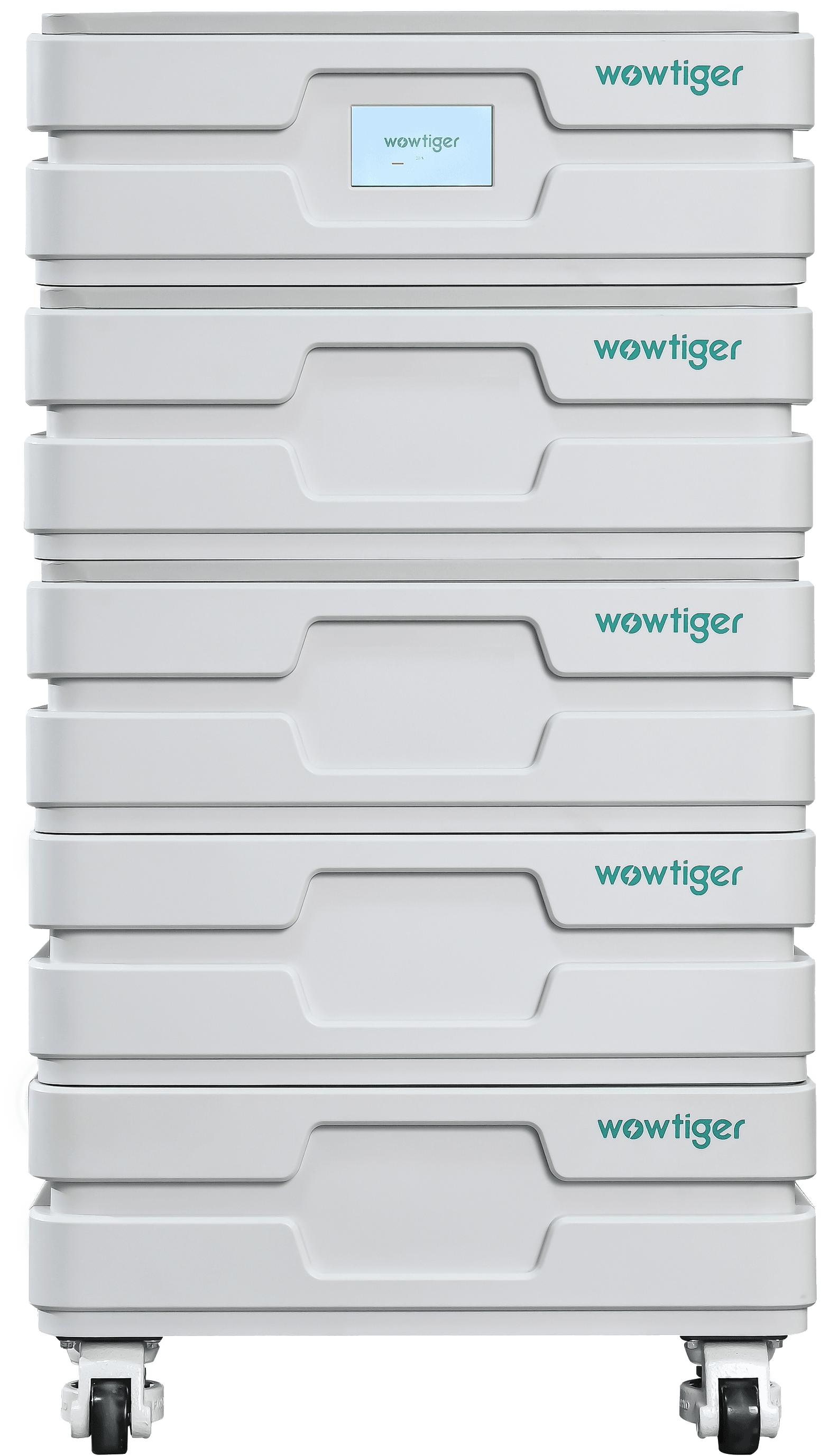

High-power hybrid inverter system with modular battery expansion capability.
| Parameter | Value |
|---|---|
| Model | SI485KP |
| Input Power | Max 1000W 6A |
| Charging Voltage Range | 170~280VAC |
| Rated Output | 5000W |
| Output Waveform | Pure sine wave |
| Power Factor | 1PF |
| Efficiency | >94.5% |
| Overload Capacity (Battery) | 1min@102%~110%Load /n0s@110%~130%Load/4S@130%~190%Load/200ms@>190%Load |
| Maximum Charging Current | 80A |
| PV Controller Type | MPPT |
| PV / MPPT Voltage Range | 120-430V |
| Maximum PV Input Power | 5500W |
| Protection Functions | Overldischarge;Overcharge; Overload; Overcurrent;Short circuit; High Temperature; Low Temperature |
| Operating Temperature | -10°C-50°℃ |
| Storage Temperature | -15°℃~60°℃ |
| Humidity Range | 20%~95%（Nocondensing) |
| Cooling Method | Forced Air Cooling |
| Battery / Cell Type | Solid-State Battery |
| Display Mode | Hurdtuch, Sklin, Ryder (optional) |
| Remote Monitoring | WIFI/4G |
