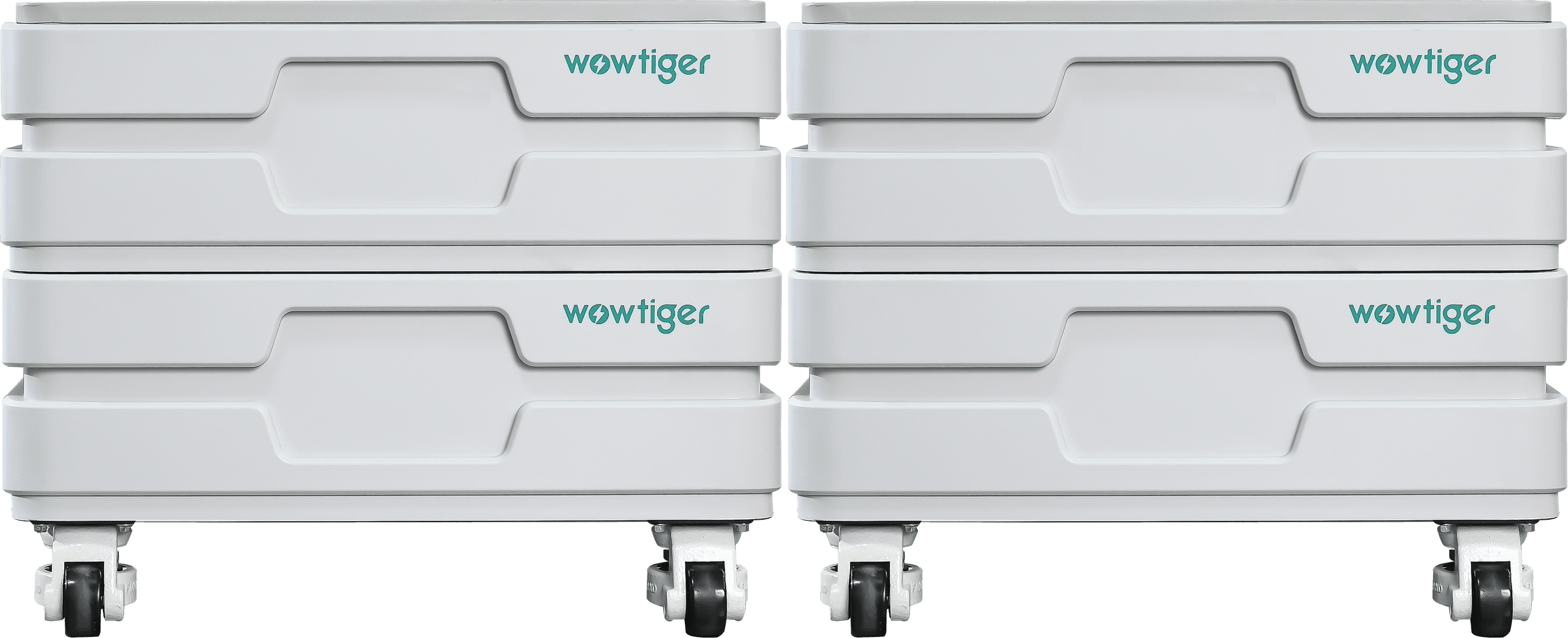

Max Parallel to 96kWh/16pcs
| Parameter | Value |
|---|---|
| Model | SD-SS516S |
| Rated Capacity | 6144Wh |
| Cell Configuration | 16S2P |
| Rated Voltage | 51.2V |
| Maximum Continuous Current | 100A |
| Maximum Parallel Units | 6 |
| Protection Functions | Overldischarge;Overcharge; Overload; Overcurrent;Short circuit; High Temperature; Low Temperature |
| Operating Temperature | -10°C-50°℃ |
| Storage Temperature | -15°℃~60°℃ |
| Humidity Range | 20%~95%（Nocondensing) |
| Cooling Method | Forced Air Cooling |
| Battery / Cell Type | Solid-State Battery |
| Altitude | <2000m |
